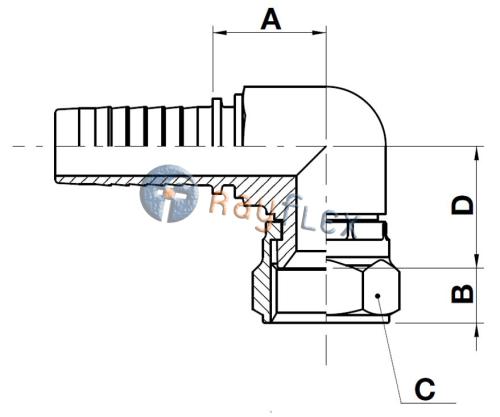

COMPACT 90° ELBOW SAE JIC 37°

Technical Sheet

Product List

Code

Rosca

A
mm

B
mm

C
mm

D
mm

Ø manguera
pulg.

RL10450404C

7/16"-20

18.5

8.5

14

19.6

1/4

RL10451008C

7/8"-14

25

13

27

28.3

1/2

RL10451616C

1"5/16"-12

34

14.5

38

32.5

1"

Previous level

The data provided is for guidance only and may be subject to changes or corrections without prior notice. Please contact us if you detect any errors or require further technical information.
