1SN/2SN/2SC FERRULE

APPLICATIONS

No requiere pelado de manguera.

Technical Sheet

Product List

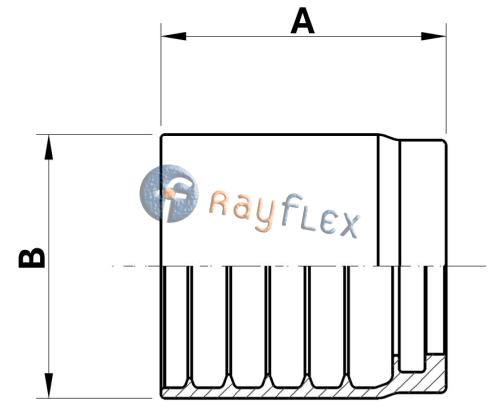

Code	A mm	B mm	Ø manguera pulg.
RL00430003	25.7	20	3/16
RL00430004	30	23	1/4
RL00430005	30.5	24	5/16
RL00430006	31.5	26	3/8
RL00430008	33.5	29	1/2
RL00430010	36	32	5/8
RL00430012	40	37	3/4
RL00430016	50	46	1"
RL00430020	59	59	1"1/4
RL00430024	67	67	1"1/2
RL00430032	82	80	2"
RL00430040	80	88.3	2"1/2
RL00430048	87.5	103	3"
