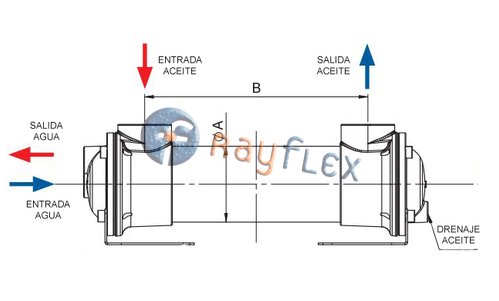

COTA A (mm)
Ø85Relación de productos
Código | Referencia | Rendimiento | Rosca | B | Caudal |
|---|---|---|---|---|---|
HU60015001 | SA080-150-S4 | 3 - 5,5 | 1" BSPP | 150 | 25 - 75 |
HU60031002 | SA080-310-S4 | 5 - 10 | 1" BSPP | 310 | 25 - 80 |
HU60031003 | SA081-310-L4 | 8 - 13 | 1"1/2 BSPP | 310 | 50 - 120 |
HU60056004 | SA080-560-S4 | 9 - 15 | 1" BSPP | 560 | 25 - 80 |
HU60056005 | SA081-560-L4 | 12 - 18 | 1"1/2 BSPP | 560 | 60 - 150 |
HU60071506 | SA081-715-S4 | 11 - 19 | 1"1/2 BSPP | 715 | 40 - 100 |
HU60071507 | SA081-715-L4 | 17 - 20 | 1"1/2 BSPP | 715 | 100 - 160 |
HU60087008 | SA081-870-S4 | 13 - 20 | 1"1/2 BSPP | 870 | 50 - 130 |
HU60087009 | SA081-870-L4 | 20 - 23 | 1"1/2 BSPP | 870 | 140 - 190 |
