BSPP BULKHEAD WITH NUT

MATERIAL

Acero carbono - Zinc blanco con CR3+

Technical Sheet

Product List

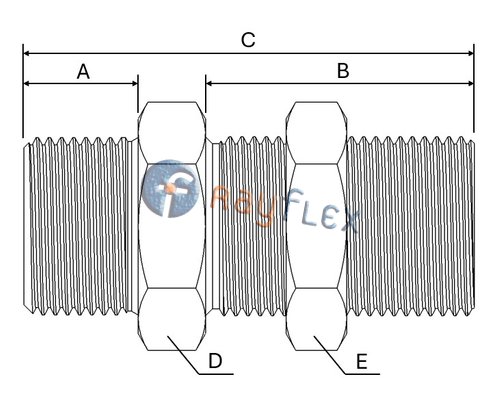

Code	Rosca	Rosca	A mm	B mm	C mm	D mm	E mm
RB60230002	M-1/8	M-1/8	10	33	49	14	14
RB60230004	M-1/4	M-1/4	12	35	53	19	19
RB60230006	M-3/8	M-3/8	13,5	35	56,5	22	22
RB60230008	M-1/2	M-1/2	16	39	65	27	27
RB60230010	M-5/8	M-5/8	17,5	40	67,5	30	30
RB60230012	M-3/4	M-3/4	18,5	42	71,5	32	32
RB60230016	M-1"	M-1"	20,5	50	84	41	41
RB60230020	M-1"1/4	M-1"1/4	20,5	52	89,5	50	50
RB60230024	M-1"1/2	M-1"1/2	23	55	93	55	55
RB60230032	M-2"	M-2"	25,5	55	97,5	70	70
