THREADED MALE PLUG WITH 60° CONICAL SEAT STAINLESS STEEL

Technical Sheet

Product List

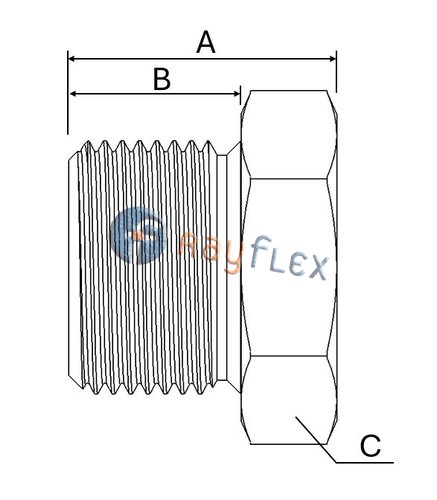

Code	Rosca	A mm	B mm	C mm	P.trabajo bar
XRB60520004	1/4	17	10	19	400
XRB60520006	3/8	20,5	12	22	400
XRB60520008	1/2	24	14	27	350
XRB60520012	3/4	27	16	32	400
XRB60520016	1"	32	19	41	250
XRB60520020	1"1/4	34	20	50	200
XRB60520024	1"1/2	37	20	55	160
XRB60520032	2"	41	34,5	70	125

Previous level

The data provided is for guidance only and may be subject to changes or corrections without prior notice. Please contact us if you detect any errors or require further technical information.
